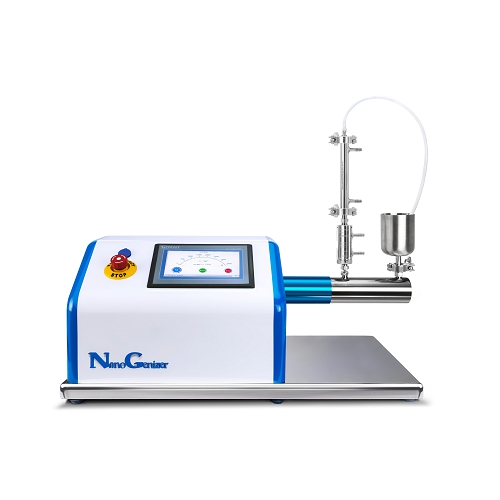

NanoGenizer High Pressure Homogenizer:
NanoGenizer is a laboratory high pressure processing device. It is an electrically-driven and bench-top, high pressure homogenizer requiring no compressed air or hydraulic oil to achieve maximum 3,062 bar (45,000 psi) operating pressure.

NanoGenizer high pressure homogenizer is composed of a feed reservoir, high pressure pump, transducer, PLC control panel and microfluidics diamond interaction chamber. The sanitary pump system of the NanoGenizer high pressure homogenizer is able to supply the desired pressure to the product stream and push it through the micron chamber (microreactor) to create high shear rates and strong impact within the stream. This process results in uniform particle distribution and smaller particle sizes.

Application of NanoGenizer High Pressure Homogenizer:
Cell disruption and particle size reduction
Nanoemulsions
Nano dispersions
Liposomes
Deagglomeration

Performance of NanoGenizer High Pressure Homogenizer:
Energy efficient, 1/2 energy loss of the most homogenizers
Small (integrated design delivers the light weight and small dimensions)
Smart (programming control systems confer diligent functions: controlled inlet volume ± 0.1mL; auto stop with time/volume)
Silent (noiseless performance)
Strong (more than 150 mL/min at 30,000 psi)
CE compliant and RoHs compliant
