Specification:
we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.



1 High precise ball screw provides high-performance



2 Low bearing capacity and a proper travel range were required for this model because of the type of linear ball bearing.



3 XY, XZ and XYZ stages can be stacked by 2 or 3 pieces of this model.



4 Original position and limit switches at both ends which can supply the precision positioning and protection

Model Number PT-GD140G-50 PT-GD140G-100 PT-GD140G-150 PT-GD140G-200 PT-GD140G-300 PT-GD140G-400 PT-GD140G-500
Structure Travel Range(mm) 50 100 150 200 300 400 500
Platform(mm) 120x120 120x120 120x120 120x120 120x120 160x160 160x160
Screw Specifications Precise Ball Screw (4mm of guide) Ball Screw (5mm of guide)
Travel Guide High Precision Linear Slide Rail
Stepper Motor 42(1.8°) 57(1.8°)
Material Aluminum Alloy
Surface Preparation Black-Anodized
Load Capacity(Kg) 30 50
Weight(Kg) 2.8 3.4 4.5 5.2 6.3 7.2 8.3
Accuracy 8 Subdivision Resolution(μm) 2.5 3.125
Velocity 20mm/sec 40mm/sec 50mm/sec
Repeatability(μm) 5
Absolute Accuracy(μm) 8
Straightness(μm) 5 6 8
Moving Parallelism(μm) 10 15 20
Pitching 25" 50" 60"
Yawing 20" 25" 30"
Backlash(μm) 2
Lost Motion(μm) 3 5
Accessory Installing Braking Function (Optional)
Installing Grating Ruler (Optional)
Reloading Servo Motor (Optional)
Installing Dirt Shroud (Optional)




Product details:














Product Size：

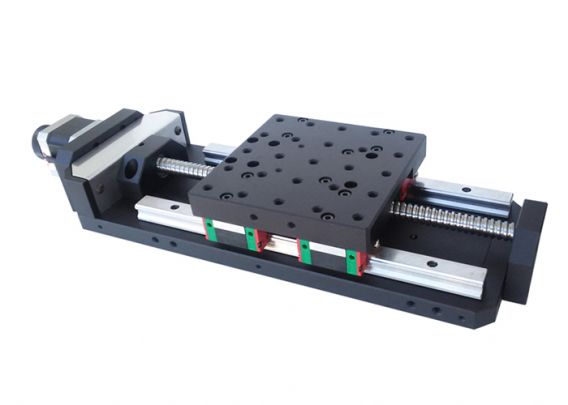

PT-GD140G Precise Electric Translating Platform

PT-GD140G Precise Electric Translating Platform

PT-GD140G Precise Electric Translating Platform

PT-GD140G Precise Electric Translating Platform

PT-GD140G Precise Electric Translating Platform

PT-GD140G Precise Electric Translating Platform



PT-GD140G Precise Electric Translating Platform



Advantage:
precision motorized tranlation stages,extensively application: institute, industry ,research precison experiment,postion and processing fields


The products can be produced according to your needs if it don't meet your need.

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage.

PDV The production of many different motorized linear translation stages, including motorized linear stage, motorized translation stage and related motorization stage
