Specification:
Specification Model

Length-Width-Height

Remarks

600x600x80

600-600-800

4Support M6 Screw Hole Pitch 25mm

750x750x80

750-750-800

4 Support M6 Screw Hole Pitch 25mm

900x600x80

900-600-800

4 Support M6 Screw Hole Pitch 25mm

1200x800x100

1200-800-800

4 Support M6 Screw Hole Pitch 25mm

1500x1000x100

1500-1000-800

4 Support M6 Screw Hole Pitch 25mm

1800x1200x150

1800-1200-800

4 Support M6 Screw Hole Pitch 25mm

2000x1000x150

2000-1000-800

4 Support M6 Screw Hole Pitch 25mm

2000x1200x150

2000-1200-800

4 Support M6 Screw Hole Pitch 25mm

2000x1500x150

2000-1500-800

4 Support M6 Screw Hole Pitch 25mm

2400x1200x200

2400-1200-800

4 Support M6 Screw Hole Pitch 25mm

2400x1500x200

2400-1500-800

4 Support M6 Screw Hole Pitch 25mm

3000x1000x250

3000-1000-800

6 Support M6 Screw Hole Pitch 50mm

3000x1200x250

3000-1200-800

6 Support M6 Screw Hole Pitch 50mm

3000x1500x250

3000-1500-800

6 Support M6 Screw Hole Pitch 50mm

3500x1200x250

3500-1200-800

6 Support M6 Screw Hole Pitch 50mm

3500x1500x250

3500-1500-800

6 Support M6 Screw Hole Pitch 50mm

4000x1500x250

4000-1500-800

6 Support M6 Screw Hole Pitch 50mm

4500x1500x300

4500-1500-800

6 Support M6 Screw Hole Pitch 50mm

5000x1500x300

5000-1500-800

8 Support M6 Screw Hole Pitch 50mm

6000x1500x300

6000-1500-800

8 Support M6 Screw Hole Pitch 50mm

8000x1500x300

8000-1500-800

8 Support M6 Screw Hole Pitch 50mm



Product details:

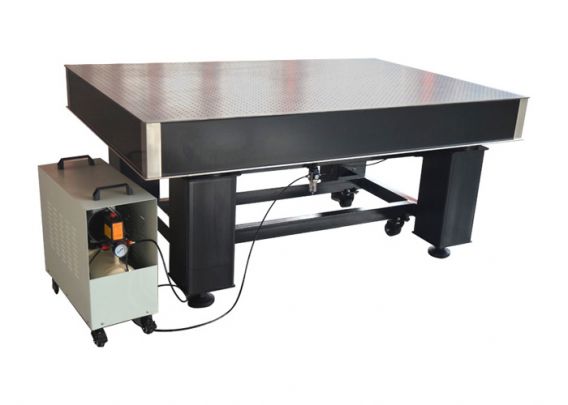

Precision Air Bearing Isolation Optical Table PT-02QF



Product features:

The outer frame of the large optical vibration isolation platform is made of medium carbon steel plate with strong rigidity, small deformation and good welding performance.

The vibration isolation layer uses honeycomb structure materials with low natural frequency and strong vibration resistance performance to control the vibration response.

The panel is made of high magnetic conductivity stainless steel plate, which is practical, beautiful and wear-resistant after fine grinding.

The vibration isolation support adopts a two-layer membrane capsule, and the small hole air damping is highly effective with good vibration isolation performance. It is equipped with an automatic inflation system, which is compact, stable and reliable.

Silent air source, low noise (less than 65 dB).

The adjusting support part adopts wear-resistant screw rod and plane thrust ball bearing, which is easy and reliable to use.

Flatness:<0.05mm/m2

Surface roughness:<0.8 μ m

Natural frequency: vertical 1.2Hz~2.0Hz, horizontal 1.2Hz~2.0Hz

Amplitude:<1.2 μ m

Air pressure: 0.2-0.6 (Mpa)



Advantage:
PDV is a company integrating R&D, production and sales. Specializing in the production of optical plates, optical experimental adjustment stands, precision manual displacement tables, optical slides and other precision equipment. Complete specifications, can meet the needs of different users, stable quality, won the trust of customers.
