Description
1. Overview

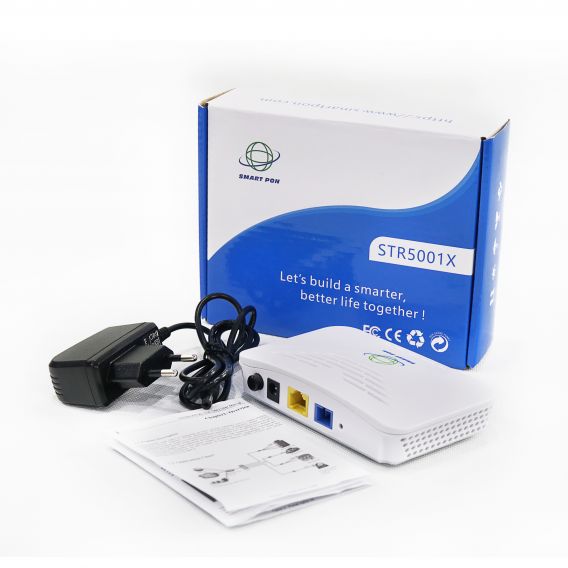

● STR5001X is designed as HGU (Home Gateway Unit) in deferent FTTH solutions, The

carrier-class FTTH application provides data service access.

● STR5001X is based on mature and stable, cost-effective XPON technology. It can switch

automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.

● STR5001X adopts high reliability, easy management, configuration flexibility and good

quality of service (QoS) guarantees to meet the technical performance of the module of China

Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X


2. Functional Feature

● Support EPON/GPON mode and switch mode automatically

● Support ONU auto-discovery/Link detection/remote upgrade of software

● Support Route PPPoE/IPoE/Static IP and Bridge mode

● Support IPv4/IPv6 Dual mode

● Support Firewall function and IGMP multicast feature

● Support LAN IP and DHCP Server configuration

● Support Port Forwarding and Loop-Detect

● Support TR069 Remote Configuration and maintenance

● Specialized design for system breakdown prevention to maintain stable system



3.Application

● Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
● Typical Business：INTERNET、IPTV etc

Hardware Specification

Technical item
Details
PON Interface
1 GPON BOB （Class B+/Class C+）
Receiving sensitivity: ≤-27dBm/≤-29dBm
Transmitting optical power:+0.5~+5dBm/+2~+7dBm
Transmission distance: 20KM
Wavelength TX: 1310nm, RX: 1490nm
Optical Interface SC/UPC Connector
Chip Spec RTL9601D ,CPU 300MHz,DDR2 32MB
Flash : SPI Nor Flash 16MB
LAN Interface
1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45connector
LED: 4 LED, For Status of PWR、LOS、PON、LINK/ACT
Push-Button
2,For Function of Power on/off,Reset
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing）
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing）
Power Supply DC 12V/0.5A
Power Consumption <3W
Dimension 120mmx78mmx30mm(L×W×H)
NET Weight 0.13KG, Gross Weight 0.35KG
