Specification:
Pitch adjustment range: ±5°



Rotation (Yaw) adjustment range: ±4°



Driving device: differential head



The rotary adjustment is locked by a white handwheel on the side



Horizontal load: 3kg

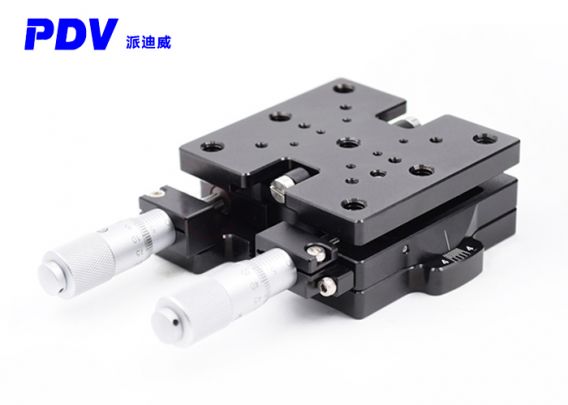

PT-QX201M Pitching rotary table is a compact displacement table that can provide two-dimensional pitching and rotation adjustment. The main material is aluminum alloy, and the surface is black anodized. The differential head is used to adjust the pitch and rotation, the pitch Angle is adjustable to ±5°, the rotation Angle is adjustable to ±4°, and the rotation adjustment is locked by the white hand wheel on the side. The mounting holes at the bottom must be used with M6 hexagonal flat round head screws. Do not replace the M6 hexagonal flat round head screws. Otherwise, the screw head is too high, which may affect the rotating adjustment effect.

Product parameters:

Model number

PT-QX1201M

Pitch adjustment range

±5°

Range of rotation adjustment

±4°

Driving device

Differential head

Horizontal load

3kg

weight

0.327 kg

Main material

Aluminium alloy

Surface treatment

Black anodizing
