Precise Manual Goniometer Stage

Lab Instruments - Lab Equipments

Product Description

Specification:

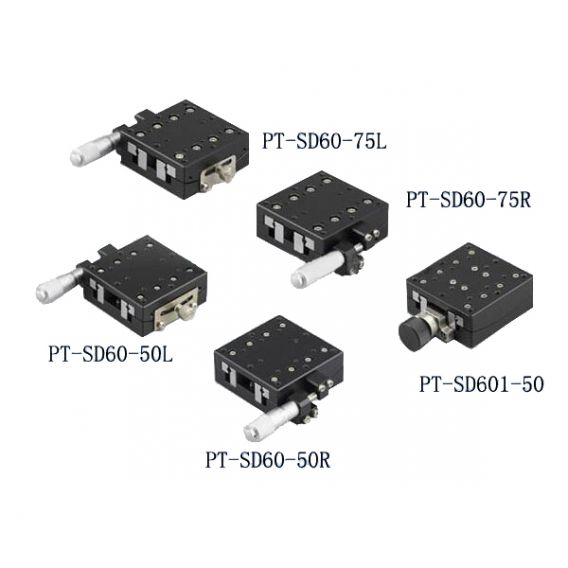

Model Number PT-SD60-50R PT-SD60-50L PT-SD60-75R PT-SD60-75L PT-SD601-50
Driving Mode Micrometer Head
Operating Position Right Left Right Left Center
Rotating Center 50mm 75mm 50mm
Scale =33”/degree =24”/degree =33”/degree
Platform Size 60×60mm
Travel Range:XY PlaneTravel Range:XY Plane ±7°
Travel Guide V-Groove Roller Guide
Load Capacity 5kgf(49N)
Weight 0.3kg
Surface Preparation Aluminum Alloy-Black-anodized
Advantage:
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.

It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.

If our standard doesn't meet your needs, you can customize it.
