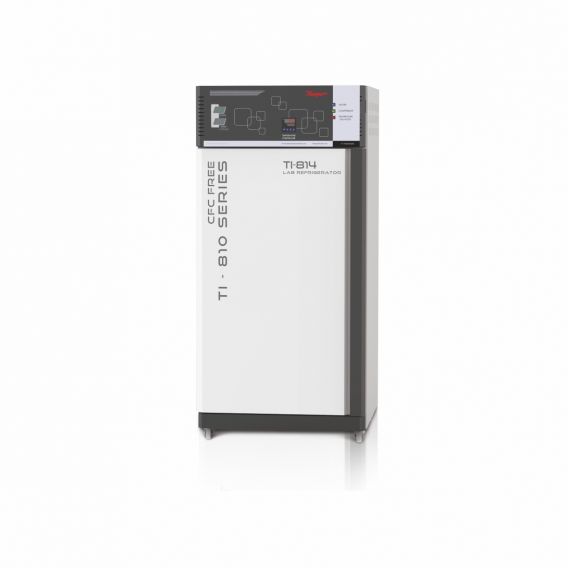

“TEMPO” lab refrigerator is made of double walled construction with thick high grade PUF insulation. Full view inner acrylic door & front door with gasket & locking arrangement. The motorized blower at the backside of the chamber develops a unique airflow system to maintain uniform temperature condition inside the chamber. Unique airflow assures quick recovery after door openings. The unit is provided with a user friendly adjustable specially designed S.S rod trays, ensures uniform temperature distribution. The equipment is mounted on castor wheels for easy movement.

Temperature range – 2°C to 8°C
Temperature accuracy – ±0.5°C
Supply – 230V, AC

Construction
Lab refrigerator is made of double walled construction with thick high grade PUF insulation. Full view inner acrylic door & front door with gasket
& locking arrangement. The motorized blower at the backside of the chamber develops a unique air ow system to maintain uniform temperature condition inside the chamber. Unique air ow assures quick recovery after door openings. The unit is provided with a user friendly adjustable specially designed S.S rod trays, ensures uniform temperature distribution. The equipment is mounted on castor wheels for easy movement.

Technical Specification
Controlling System
By means of imported microprocessor based auto tuned PID controller with CE mark & dual display of set value & process value.

Sensor
PT 100 sensor is used for sensing the temperature.

Heating System
High quality S.S. tubular heaters are used for better heating.

Refrigeration System
CFC free hermetically sealed Emerson Copeland make compressor for better cooling with R134 A (eco-riendly) refrigerant with a time delay to safeguard compressor system.

Validation Port
50 mm validation porthole with silicon rubber seal to insert sensor for validation

Features
Full view observation Acrylic door with a gasket to observe the sample inside the chamber. Interior illumination for working area. Specially designed stainless steel rod trays ensure uniform temperature distribution.

Safety Features
Safety standby thermostat to cut off heater supply in case of overshoot of temperature. Inbuilt overload protector provided for the hermetically sealed compressor. Compressor ON delay timer (2 min) to safeguard the compressor.
