Specification:
High Precision Motorized Rotation Stages using，New construction ,new technology;the key index has up to the international level of the similar products by strictly inspection .

This series products are used to laser precision processing,three dimensional scanning measurment system and so on .



1 Item Number: PT-GD220H

2 Rotation Range: 360° of Continuous Rotation

3 Diameter of Platform: Ø220mm

4 Drive Mechanism: Worm Gear

5 Worm Gear Ratio: 198 : 1

6 Stepper Motor (1.8°): 57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle

7 Material – Finish: Aluminum Alloy - Black-Anodized

8 Load Capacity:180Kg

9 Weight: 15kg



Accuracy Specifications

1 Design Resolution: 0.01°=36”, Non-MS Driver

2 Rotational Velocity (Max): 9°/sec

3 Repeatability: 0.005°=18”

4 Absolute On-Axis Accuracy: 0.01°=36”

5 Run-Out of Top Plate: 25μm

6 Backlash: 0.005°=18”

7 Eccentricity: 20μm

8 Lost Motion: 0.005°=18″

9 Parallelization:100μm

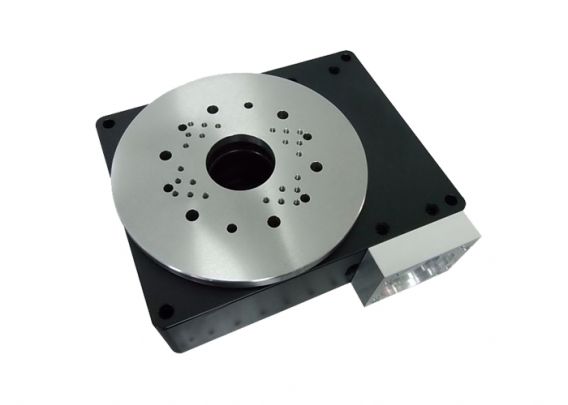

High Precision Electric Rotating Machine, Electric Rotating Platform PT-GD220H



Product details:
Advantage:
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.

The products can be produced according to your needs if it don't meet your need.
