Price : USD $4.780 /unit.

Min Order : 1 unit.

Please contact us or visit our company aztoolspro . com/ , For more specifications information, packaging and orders product.

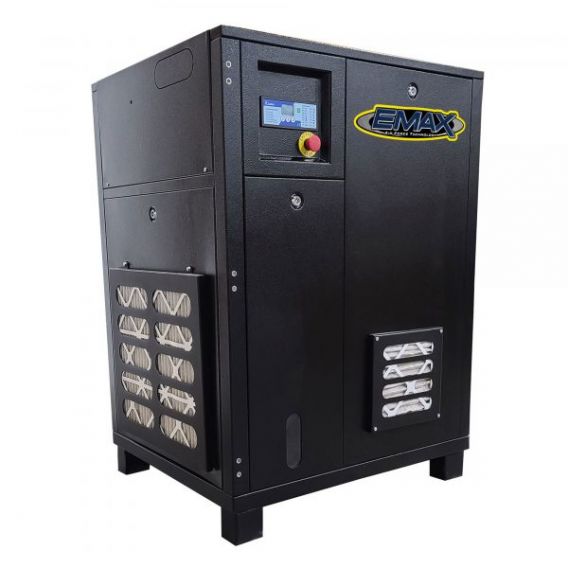

Emax 3PH Indust Rotary Screw Compressor Cabinet Only, Horsepower 5 HP, Air Tank Size 0 Gal, Volts 230/460, Model# ERI0050003.

EMAX Compressors 5HP new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary’s with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is a floor mount model and does not include the receiving tank or air dryer.

What’s Included

(1) EMAX 5HP 3PH Industrial Rotary Screw Compressor-Cabinet Only
Key Specs

Item# 4907620
Brand Emax
Manufacturer’s Warranty 1 year limited warranty
Ship Weight 483.0 lbs
Horsepower 5 HP
Air Tank Size 0 Gal
Volts 230/460
Stage 0
CFM at 90 PSI 22
Max. PSI 145
CFM at 40 PSI 25
CFM at Max. PSI 17
Working Pressure 145 PSI
Air Outlets (qty.) 1
Air Outlet Size 1/2 in. NPT
Motor RPM 1,750
Motor Phase 3
Amps 13
Duty Cycle 100 %
Tank Fill Time 0 min
Fuel Capacity 0 Gal
Noise Level 65 dB
Oil Required Yes
Low Oil Shutdown No
Lubrication System Pressure
Pressure Gauge Yes
Electronic Drain Valve No
After Cooler Included No
Air Dryer None
Product Weight 438.0000 lb
Dimensions L x W x H (in.) 34.0 x 24.0 x 41.0 in
