Price : USD $5.697 /unit.
Min Order : 1 unit.

Please contact us or visit our company aztoolspro . com/ , For more specifications information, packaging and orders product.

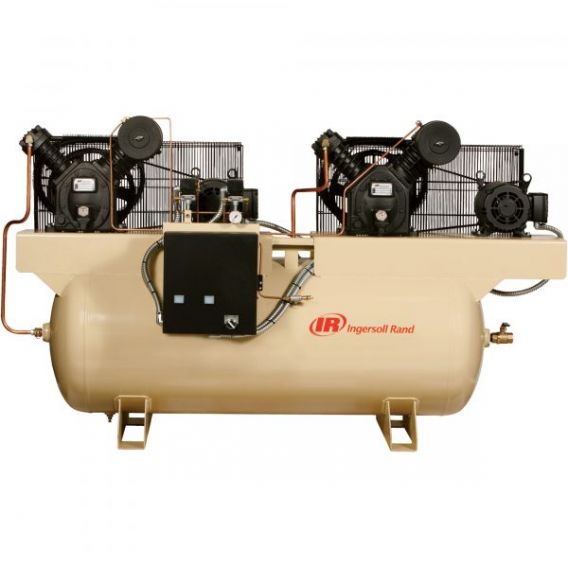

Ingersoll Rand Air Compressor — Duplex, 7.5 HP, 230 Volt 3 Phase, Model# 2475E7.5-V.

Protect your business from unproductive and expensive downtime! The Ingersoll Rand Duplex Reciprocating Compressor offers two individual 2-stage pumps and two motors mounted on a single 120-gallon horizontal tank, providing 100% built-in backup (you’ll have a motor and pump running even when one is down) or additional air power for large-capacity jobs. Features the legendary T30 pump with value-added features in a space-saving design. 175 max. PSI, 230V, three-phase. Requires two Ingersoll Rand start-up kits, Item# 1592008 (sold separately).

What’s Included

(1) Duplex air compressor
Key Specs

Item# 305502
Brand Ingersoll Rand
Manufacturer’s Warranty 12 months parts / 12 months labor
Ship Weight 1275.0 lbs
Horsepower 7.5 (each)
Air Tank Size 120
Volts 230
Stage 2
Max. PSI 175
CFM at Max. PSI 48.25
Motor Phase 3
Duty Cycle 100 %
Pump Life 15,000
Pump Material Cast iron
Oil Required Yes
Weight (lbs.) 1,275 lbs.
Dimensions L x W x H (in.) 83 x 33 x 48
