Short Description:
PON Interface: 1 GPON BOB (Class B+/Class C+) Application: FTTH(Home),FTTO(Office), FTTB(Building) Optical Interface: SC/UPC Connector LAN Interface: 1x 10/100/1000Mbps auto adaptive Ethernet interface Operating Temperature: 0℃~+50℃ Power Supply: DC 12V/0.5A Power Consumption: <3W Wavelength: TX: 1310nm, RX: 1490nm

Certification: ROHS/ ISO9001 /CE Warranty: 1 Year

1. Overview

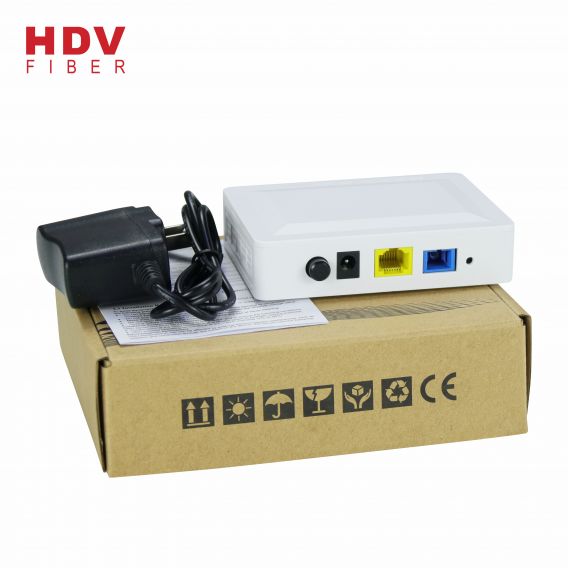

* HTR5033X is designed as HGU (Home Gateway Unit) in deferent FTTH solutions,The carrier-class FTTH application provides data service access.
* HTR5033X is based on mature and stable, cost-effective XPON technology. Itcan switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
* HTR5033X adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support ONU auto-discovery/Link detection/remote upgrade of software
* Support RoutePPPoE/IPoE/Static IP and Bridge mode
* Support IPv4/IPv6 Dual mode
* Support Firewall function and IGMP multicast feature
* Support LAN IP and DHCP Server configuration
* Support Port Forwarding and Loop-Detect
* Support TR069 Remote Configuration and maintenance
*Specialized design for system breakdown prevention to maintain stable system
