Specification:
Model Number

PT-SD311

PT-SD312

Adjustment Range

±10°

±15°

Platform Size

120mm×130mm

Axle Centre Height

180mm

120mm

Height

60mm

Horizontal Max Load Capacity

40kg

Scale

1°

1°

Reading

1°

1°

Weight

3.5kg

3.3kg

Drive ratio 300：1 420：1


Product details:
Product features:

Provide rotation angle adjustment

The mounting surface is placed horizontally for convenient installation and fixation

It is designed in pairs, and the rotation center is the same point after superposition, which can be adjusted by orthogonal biaxial concentric rotation;

Turbine driven, annular ball with steel guide rail, comfortable movement and reliable accuracy

Hand wheel locking, safe and reliable



Product dimension drawing:

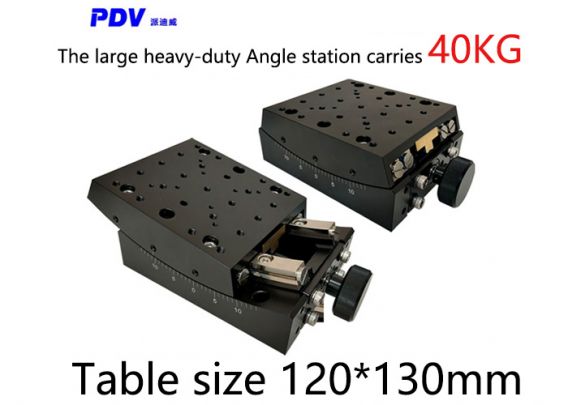

Manual Goniometer Radian inclined displacement Stage Load Capacity 40KG

Advantage:
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.

It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.

If our standard doesn't meet your needs, you can customize it.
