Price : USD $6.250 /unit.
Min Order : 1 unit.

Please contact us or visit our company aztoolspro . com/ , For more specifications information, packaging and orders product.

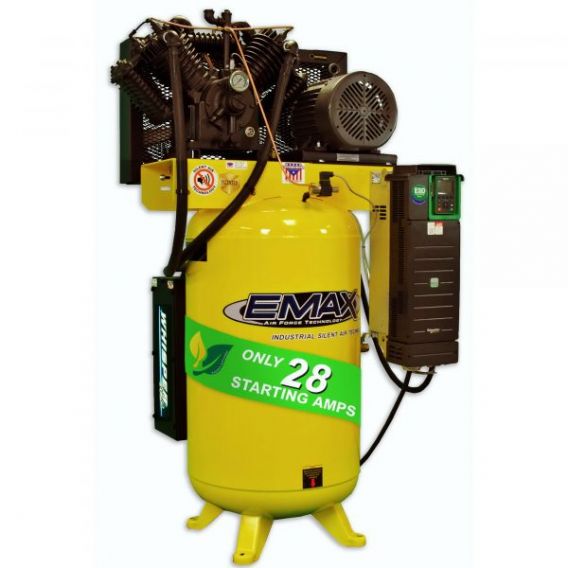

Emax Smart Air Compressor Variable Speed Aftercooler, Horsepower 10 HP, Air Tank Size 80 Gal, Volts 230, Model# EVR10V080V13.

EMAX smart alternating compressors are fully programable and paired together allowing the units to alternate from one unit to the another. In the case that one unit is not keeping up with demand, then both units will come on and run until the unit hits the pressure setting, after which it will go back into normal alternating mode. Built-in air demand sensor automatically increases or decreases the pump speed and air output based on actual air demand, reducing energy waste with fully programmable logic controllers it allows you to set the date, hours of operation, PSI and RPM ranges and digitally displays kW energy savings while the air compressor is running. Variable Speed Drive technology allows these smart air compressors to operate on single or three phase power options. Both units have our Patented pressure lubricated 2-stage cast iron pumps rated at up to 70,000 hours of use! Both units are equipped with our Whisper100 system lowing the DB levels up to 35%! Our aftercooler system cools the air going into the tank down to 10 degrees above ambient! This system helps combat moisture issues by cooling the air before it hits your lines helping protect your equipment With 84% energy savings on startups and 40% energy savings during run cycles, the silent air compressor will pay for itself in energy savings in 24 months!!

What’s Included

(1) EMAX Industrial Plus Silent 10HP 80 gallon Variable speed single/three phase 208/230 Volt smart air compressor -With Pressure Lube Pump and Cooling Radiator
Key Specs

Item# 4907144
Brand Emax
Manufacturer’s Warranty 1 year limited warranty
Ship Weight 1100.0 lbs
Horsepower 10 HP
Air Tank Size 80 Gal
Volts 230
Stage 0
CFM at 90 PSI 38
Max. PSI 175
CFM at 40 PSI 35
CFM at Max. PSI 29
Working Pressure 145 PSI
Air Outlets (qty.) 1
Air Outlet Size 3/4 in. NPT
Motor RPM 1,750
Motor Phase 1
Amps 48
Duty Cycle 80 %
Tank Fill Time 4 min
Fuel Capacity 0 Gal
Pump Material Cast Iron
Noise Level 79 dB
Oil Required Yes
Low Oil Shutdown No
Lubrication System Pressure
Pressure Gauge Yes
Electronic Drain Valve Yes
Drain Type Automatic
After Cooler Included Yes
Air Dryer None
Tank Orientation Vertical
Product Weight 810.0000 lb
Dimensions L x W x H (in.) 38.0 x 42.0 x 72.0 in
