Price : USD $4.010 /unit.
Min Order : 1 unit.

Please contact us or visit our company aztoolspro . com/ , For more specifications information, packaging and orders product.

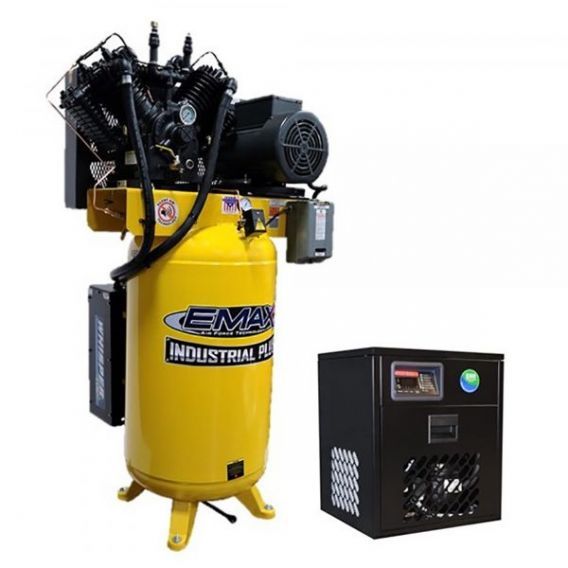

Emax Silent 3PH Vertical Compressor 30CFM Dryer Bundle, Horsepower 7.5 HP, Air Tank Size 80 Gal, Volts 230/460, Model# ESP07V080V3PK.

EMAX Bundle comes with our Industrial Plus 7.5 HP 2 Stage V4 3 Phase vertical 80 gal. Piston Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. This unit delivers 31 CFM 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron patented pressure lubricated reciprocating pump. This unit features our patented Whisper100 silent air system already installed. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. We have paired this compressor with our 30CFM energy efficient refrigerated air dryer to make your buying experience seamless! Our EMAX air dryer filters air solid particles down to 0.01 microns leaving your air dry and reducing contamination to your equipment. These bundles are backed by the best warranty in the industry!

What’s Included

(1) EMAX Silent Industrial Plus 7.5 HP 3 Phase 2-Stage 80 gal. Compressor with 30 CFM Dryer Bundle-With Pressure Lube Pump
Key Specs

Item# 4906694
Brand Emax
Manufacturer’s Warranty 1 year limited warranty
Ship Weight 1019.0 lbs
Horsepower 7.5 HP
Air Tank Size 80 Gal
Volts 230/460
Stage 2
CFM at 90 PSI 32
Max. PSI 175
CFM at 40 PSI 35
CFM at Max. PSI 27
Working Pressure 145 PSI
Air Outlets (qty.) 1
Air Outlet Size 3/4 in. NPT
Motor RPM 1,750
Motor Phase 3
Amps 18
Duty Cycle 60 %
Tank Fill Time 4.5 min
Fuel Capacity 0 Gal
Pump Material Cast Iron
Noise Level 72 dB
Oil Required Yes
Low Oil Shutdown No
Lubrication System Pressure
Pressure Gauge Yes
Electronic Drain Valve Yes
Drain Type Automatic
After Cooler Included Yes
Air Dryer Mounted
Tank Orientation Vertical
Product Weight 1250.0000 lb
Dimensions L x W x H (in.) 38.0 x 42.0 x 72.0 in
