Price : USD $2.675 /unit.

Min Order : 1 unit.

Please contact us or visit our company aztoolspro . com/ , For more specifications information, packaging and orders product.

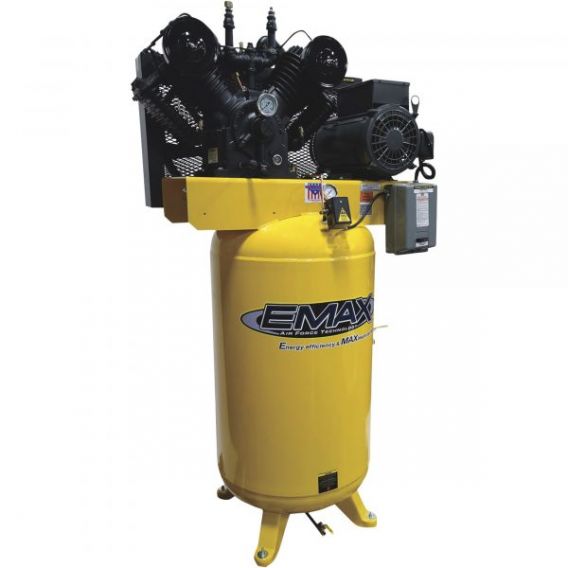

EMAX Industrial 10 HP, 2-Stage, 80-Gallon Vertical Air Compressor — 230 Volt, 1-Phase, Model# EI10V080V1.

This EMAX Industrial 10 HP, 2-Stage, 80-Gallon Vertical Air Compressor is designed for up to 70,000 hours of commercial or industrial use with proper maintenance. The 2-stage cast iron pump features Timkin-style stainless steel roller bearings on the front and rear of the crankshaft to ensure smooth, efficient operation with minimum drag. 100% brass ASME safety valves are preset and sealed for correct settings. Taper-lock and 2-groove, B-style belts ensure long belt life and low vibration. The 10 HP ODP motor features 1750 RPM and 60 Amp run for cool operation and easy startup.

What’s Included

(1) Air compressor
Product ManualKey Specs

Item# 61125
Brand Emax
Manufacturer’s Warranty 5 year limited warranty
Ship Weight 880.0 lbs
Horsepower 10
Air Tank Size 80
Volts 230
Stage 2
CFM at 90 PSI 36
Max. PSI 175
CFM at 40 PSI 38
CFM at Max. PSI 30
Working Pressure 145–175
Air Outlets (qty.) 1
Air Outlet Size 3/4
Motor RPM 1,750
Motor Phase 1
Amps 60
Duty Cycle 70 %
Pump Life 70,000
Pump Material Cast iron crankcase and cylinders, aluminum head
Noise Level (dB) 70
Oil Required Yes, comes with oil in pump but must be checked before operation
Low Oil Shutdown No
Lubrication System Pressure lube
Drain Type Manual
Weight (lbs.) 785
Dimensions L x W x H (in.) 37 x 24 x 74
